Kubernetes Access

The Oracle Backend for Spring Boot and Microservices requires a Kubernetes cluster where the components are deployed. You can bring your own cluster or, in OCI, have a Oracle Kubernetes Engine (OKE) deployed for you.

OKE Access

At the end of setup, you are provided with a command in the log of the apply job to create a Kubernetes configuration file to access that cluster:

Tip

For more information about working with the Kubernetes cluster, see Setting Up Cluster Access in the Oracle Cloud Infrastructure documentation.

kubeconfig_cmd = "oci ce cluster create-kubeconfig
                    --cluster-id ocid1.cluster.oc1.iad.xxx
                    --file $HOME/.kube/config
                    --region us-ashburn-1
                    --token-version 2.0.0
                    --kube-endpoint PUBLIC_ENDPOINT"

NOTE: The generated kubeconfig file works if you are using the DEFAULT profile in your Oracle Cloud Infrastructure (OCI) CLI configuration file. If you are using a different OCI CLI profile, you must add --profile <PROFILE-NAME> to the command. For example:

kubeconfig_cmd = "oci ce cluster create-kubeconfig
                    --cluster-id ocid1.cluster.oc1.iad.xxx
                    --file $HOME/.kube/config
                    --region us-ashburn-1
                    --token-version 2.0.0
                    --kube-endpoint PUBLIC_ENDPOINT"
                    --profile <PROFILE-NAME>

You must also edit the the generated Kubernetes configuration file and add the following lines:

- name: user-xxxx
  user:
    exec:
      apiVersion: client.authentication.k8s.io/v1beta1
      args:
      - ce
      - cluster
      - generate-token
      - --cluster-id
      - ocid1.cluster....xxxx
      - --region
      - us-ashburn-1
      - --profile
      - <PROFILE-NAME>
      command: oci

Using OCI Cloud Shell

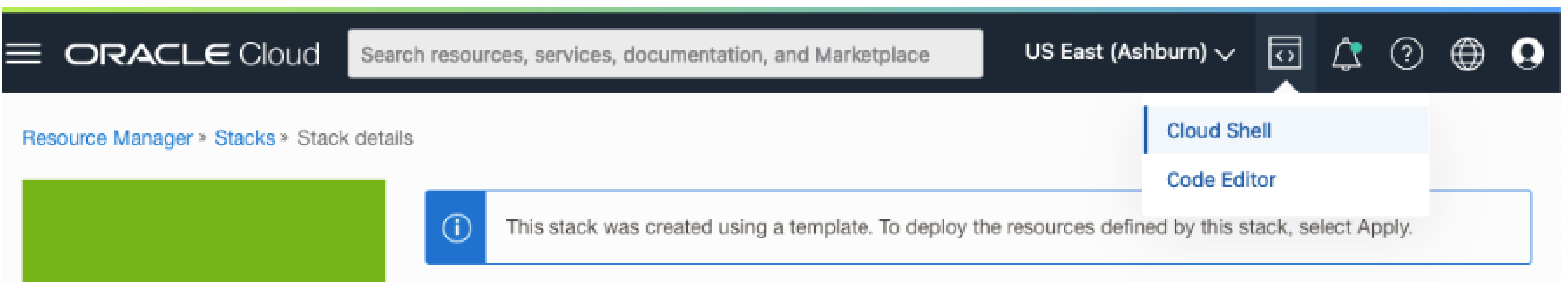

A simple alternative is to use the OCI Cloud Shell, which is provided in the OCI Console. You can open the OCI Cloud Shell by clicking Developer Tools in the upper right corner of the OCI Console. For example:

Run the provided command to create your Kubernetes configuration file after which you can access the Kubernetes cluster. For example, you can list the Pods in your cluster:

Welcome to Oracle Cloud Shell.

Update: Cloud Shell will now use Oracle JDK 11 by default. To change this, see Managing Language Runtimes in the Cloud Shell documentation.

Your Cloud Shell machine comes with 5GB of storage for your home directory. Your Cloud Shell (machine and home directory) are located in: US East (Ashburn).
You are using Cloud Shell in tenancy xxxx as an OCI user xxxx

Type `help` for more info.
user@cloudshell:~ (us-ashburn-1)$ oci ce cluster create-kubeconfig --cluster-id ocid1.cluster.oc1.iad.xxx
 --file $HOME/.kube/config --region us-ashburn-1 --token-version 2.0.0 --kube-endpoint PUBLIC_ENDPOINT
Existing Kubeconfig file found at /home/user/.kube/config and new config merged into it
user@cloudshell:~ (us-ashburn-1)$ kubectl get pods -A
NAMESPACE         NAME                                        READY   STATUS      RESTARTS        AGE
ingress-nginx     ingress-nginx-controller-7d45557d5c-bqwwp   1/1     Running     0               4h18m
ingress-nginx     ingress-nginx-controller-7d45557d5c-klgnb   1/1     Running     0               4h18m
ingress-nginx     ingress-nginx-controller-7d45557d5c-l4d2m   1/1     Running     0               4h18m
kube-system       coredns-746957c9c6-hwnm8                    1/1     Running     0               4h27m
kube-system       csi-oci-node-kqf5x                          1/1     Running     0               4h23m
kube-system       kube-dns-autoscaler-6f789cfb88-7mptd        1/1     Running     0               4h27m
kube-system       kube-flannel-ds-hb6ld                       1/1     Running     1 (4h22m ago)   4h23m
kube-system       kube-proxy-v5qwm                            1/1     Running     0               4h23m
kube-system       proxymux-client-vpnh7                       1/1     Running     0               4h23m
.........
user@cloudshell:~ (us-ashburn-1)$

Manually Scaling OKE

To add additional nodes to the OKE cluster, the Marketplace installation stack can be re-applied after increasing the number of worker nodes.

NOTE: If changes to the infrastructure were made outside the stack, re-applying the stack may revert those changes back to their original values. It is important to PLAN and review the proposed changes before running APPLY. This will ensure there are no unintentional modifications to the infrastructure.

In the OCI Console, navigate to Developer Services -> Resource Manager -> Stacks
Ensure the compartment is set to where the Marketplace Stack was deployed, and Select the stack.
Edit the Stack and Click Next
Increase the Node Pool Workers
Click Next and Save Changes
Run Plan
Carefully review the proposed changes
Run Apply after reviewing the proposed changes
