Agent Spec Adapters - LangGraph

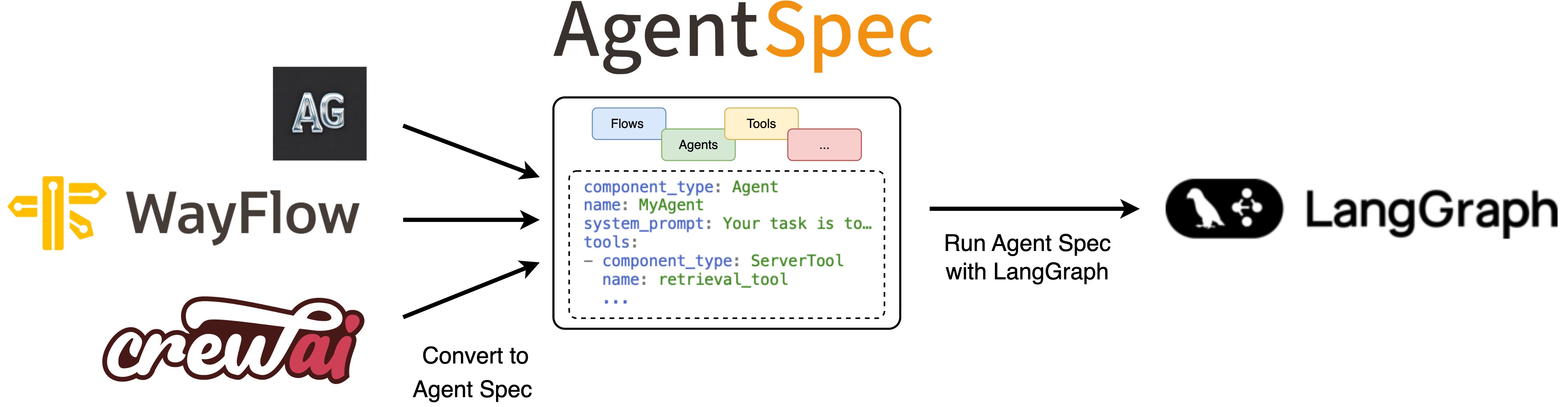

↑ With the Agent Spec adapter for LangGraph, you can easily import agents from external frameworks using Agent Spec and run them with LangGraph.

LangGraph facilitates the creation and management of long-running, stateful agents with durable execution and human-in-the-loop capabilities.

Get started

To get started, set up your Python environment (Python 3.10 or newer required), and then install the PyAgentSpec package with the LangGraph extension.

python -m venv .venv
source .venv/bin/activate  # On Windows: .venv\Scripts\activate
pip install "pyagentspec[langgraph]"

You are now ready to use the adapter:

• Run Agent Spec configurations with LangGraph (see more details below)

• Convert LangGraph agents to Agent Spec (see more details below)

Run Agent Spec configurations with LangGraph

# Create a Agent Spec agent
from pyagentspec.agent import Agent
from pyagentspec.llms.openaicompatibleconfig import OpenAiCompatibleConfig
from pyagentspec.property import FloatProperty
from pyagentspec.tools import ServerTool

subtraction_tool = ServerTool(
    name="subtraction-tool",
    description="subtract two numbers together",
    inputs=[FloatProperty(title="a"), FloatProperty(title="b")],
    outputs=[FloatProperty(title="difference")],
)

agentspec_llm_config = OpenAiCompatibleConfig(
    name="llama-3.3-70b-instruct",
    model_id="/storage/models/Llama-3.3-70B-Instruct",
    url="url.to.my.llm",
)

agentspec_agent = Agent(
    name="agentspec_tools_test",
    description="agentspec_tools_test",
    llm_config=agentspec_llm_config,
    system_prompt="Perform subtraction with the given tool.",
    tools=[subtraction_tool],
)

# Export the Agent Spec configuration
from pyagentspec.serialization import AgentSpecSerializer

agentspec_config = AgentSpecSerializer().to_json(agentspec_agent)

# Load and run the Agent Spec configuration with LangGraph
from pyagentspec.adapters.langgraph import AgentSpecLoader

def subtract(a: float, b: float) -> float:
    return a - b

async def main():
    loader = AgentSpecLoader(tool_registry={"subtraction-tool": subtract})
    assistant = loader.load_json(agentspec_config)

    while True:
        user_input = input("USER >> ")
        if user_input == "exit":
            break
        result = await assistant.ainvoke(
            input={"messages": [{"role": "user", "content": user_input}]},
        )
        print(f"AGENT >> {result['messages'][-1].content}")


# anyio.run(main)
# USER >> Compute 987654321-123456789
# AGENT >> The result of this subtraction is 864197532.

Convert LangGraph agents to Agent Spec

# Create a LangGraph Agent
from typing_extensions import Any, TypedDict
from langchain_openai.chat_models import ChatOpenAI
from langgraph.graph import END, START, StateGraph
from pydantic import SecretStr

class InputSchema(TypedDict):
    city: str

class OutputSchema(TypedDict):
    response: Any

class InternalState(TypedDict):
    weather_data: str

def get_weather(state: InputSchema) -> InternalState:
    """Returns the weather in a specific city.
    Args
    ----
        city: The city to check the weather for

    Returns
    -------
        weather: The weather in that city
    """
    return {"weather_data": f"The weather in {state['city']} is sunny."}

def llm_node(state: InternalState) -> OutputSchema:
    model = ChatOpenAI(
        base_url="your.url.to.llm/v1",
        model="/storage/models/Llama-3.1-70B-Instruct",
        api_key=SecretStr("t"),
    )
    result = model.invoke(
        f"Reformulate the following sentence to the user: {state['weather_data']}"
    )
    return {"response": result.content}

graph = StateGraph(InternalState, input_schema=InputSchema, output_schema=OutputSchema)
graph.add_node("get_weather", get_weather)
graph.add_node("llm_node", llm_node)
graph.add_edge(START, "get_weather")
graph.add_edge("get_weather", "llm_node")
graph.add_edge("llm_node", END)
assistant_name = "Weather Flow"
langgraph_agent = graph.compile(name=assistant_name)

# Convert to Agent Spec
from pyagentspec.adapters.langgraph import AgentSpecExporter

agentspec_config = AgentSpecExporter().to_json(langgraph_agent)
